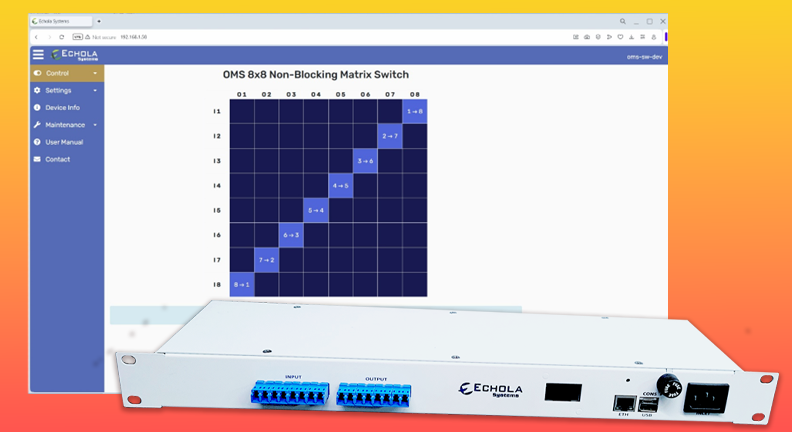

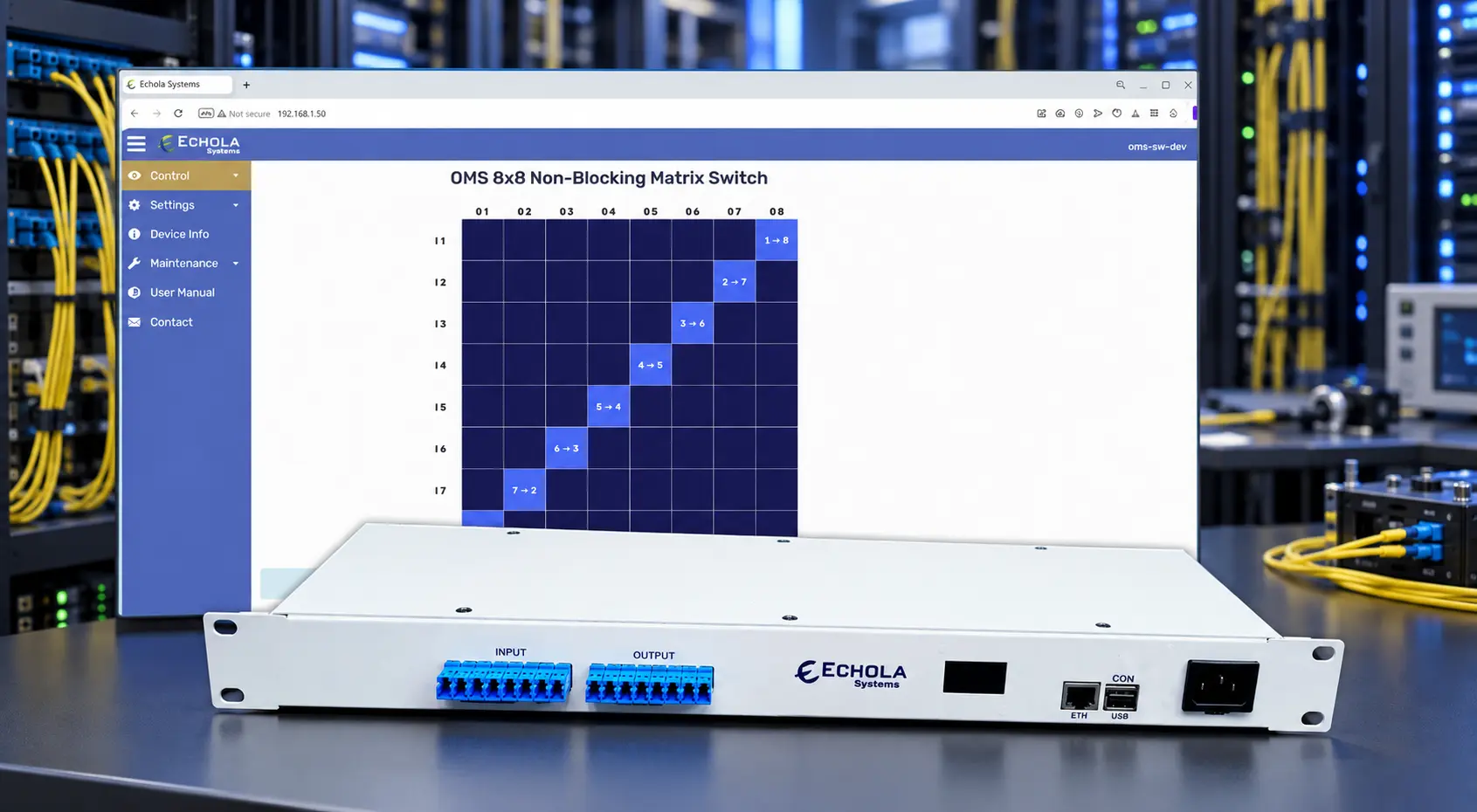

MatrixPro High Performance Optical Matrix Switch
The MatrixPro Optical Switch leverages MEMS technology to provide precise and efficient optical signal routing. Since it is a physical layer (all-optical) switch, it is inherently protocol and bit-rate-agnostic, effortlessly handling diverse communication standards without introducing latency. This makes it ideal for a wide range of applications. Their low insertion loss ensures minimal signal degradation, while their high reliability and exceptional optical stability and repeatability make them a trusted solution for critical systems. The non-blocking architecture enables simultaneous and independent connections between any input and output ports, eliminating interference or contention. This guarantees high performance and unparalleled flexibility in routing optical signals, making them ideally suited for data centers, telecom networks, and test labs.
They are designed with user convenience in mind, featuring a user-friendly web interface for straightforward configuration and monitoring. Furthermore, the integration of REST APIs enables seamless automation and remote control, making them an excellent choice for modern, automated networks. With their low power consumption, they align with energy-efficient operational requirements while maintaining superior performance.
Applications
These devices are pivotal in various applications, such as system and network testbed reconfiguration, where they streamline the process of switching and connecting test setups without manual intervention. They are widely used for centralized test equipment sharing and automated network testing, significantly improving operational efficiency in lab environments. In telecommunications, they support automated regression testing and advanced scenarios like OTN, DWDM and FTTx/PON system testing, making them an indispensable tool in both R&D and QA settings.
Key Features
- Compact Form Factor: 1RU upto 4RU depending on port count and connectors
- Low Insertion Loss: 2.5 dB typical for a 64 port model (OMS64)
- Ultra-Fast Response: MEMS switch have a typical response time of 5 ms.
- Protocol and Speed Agnostic: Compatible with Ethernet, Fibre Channel, OTN, and more at any speed (1G–100G+).
- Bi-Directional: Supports optical signals in both directions.
- Telcordia Compliance: Meets the highest reliability standards.
- Remote Management: Web-based interface over HTTPS and CLI via SSH.
- Automation Support: Integrate with REST APIs or legacy CLI-based tools.
Available Models
MatrixPro Switches are available in the following models, tailored to different port configurations:
- OMS16 (8x8 Optical Matrix Switch)
- OMS32 (16x16 Optical Matrix Switch)
- OMS64 (32x32 Optical Matrix Switch)
- OMS128 (64x64 Optical Matrix Switch)
- OMS256 (128x128 Optical Matrix Switch)
OMS16 (8x8 MEMS Matrix) Specification
| Parameter | Min | Typical | Max |
|---|---|---|---|
| Operating Wavelength | 750 nm | 1270~1630 nm | 2400 nm |
| Insertion Loss (SM) | 1.5 dB | 2.2 dB | |
| Insertion Loss (MM) | 1.8 dB | 2.8 dB | |
| Crosstalk, On/Off Ratio | 45 dB | 70 dB | |
| Extinction Ratio (PM Fiber) | 18 dB | 23 dB | |
| Switch Speed | 5 ms | 20 ms | |
| Durability | 109 cycles | ||
| Polarization Dependent Loss | 0.04 dB | 0.2 dB | |
| Wavelength Dependence Loss | 0.1 dB | 0.3 dB | |
| Return Loss | 50 dB | ||
| Repeatability | 0.05 dB | 0.1 dB | |
| Operating Temperature | 23 °F | 150 °F | |
| Storage Temperature | -40 °F | 185 °F | |
| Optical Power Handling | 500 mW | ||
| Power Supply | 100-240V AC, 50/60Hz | ||
| Power Consumption | 50 W | ||
| Display | 1 inch OLED | ||
| Optical Interface | 10x Duplex Single-mode LC connectors | ||
| Network Interface | 1x Fast Ethernet (RJ45) connector | ||
| Peripheral Interface | 1x USB for WiFi Dongle or external Flash | ||
| Console/Debug Interface | 1x USB micro connector serial interface (Baud 115200) | ||
| Enclosure Dimension | 1RU with LC Connectors | ||
